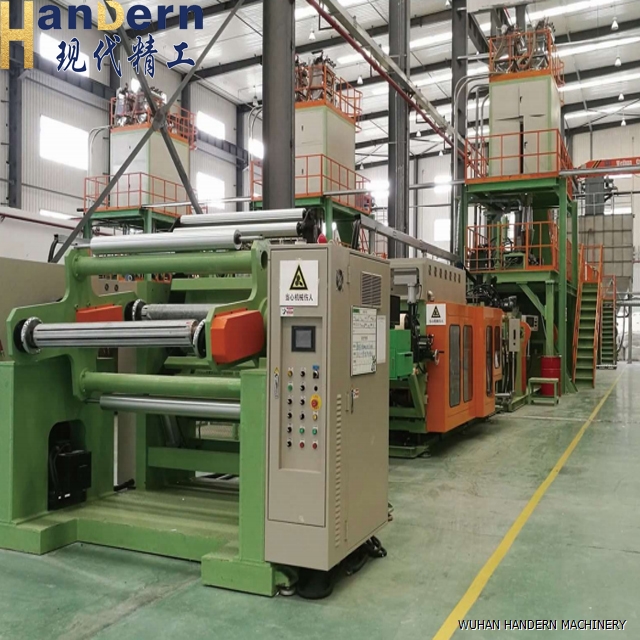

Detailed introduction of stone paper casting paper machine
DATE：2024/8/13 14:30:46 / READ： / SOURCE：This station
Introduction to the Process of Stone Paper Casting Paper Machine
The granules manufactured by the granulator are transported to the barrel of the machine, with quantitative screw for expected entrance, the electric heating and a strong push to squeeze and screw, make the raw material granules temperature rise and soften up to 200 ℃, and with melted PE material, squeezed into ABC three layers of "T" shape mold to form three layer composite sheet material,stretched by the two flow rollers, by controlling the speed to adjust the thickness of the product, then cooed and set by cooling wheel group, flattened, appearance inspection, thickness tested and static elimination, after cutting off the ear material on both sides and winding it .it is the stone paper protection base paper products.
The product can be used for writing and printing, and making products such as books, magazines, notebooks, advertising brochures and maps.Also can make packaging bags and other edges with hot seal demand products.
Main equipment parameters of stone paper casting paper machine
|
Items |
Content |
|
Productions spec |
Thickness 150-350μm, width of 1200mm |
|
Capacity |
The maximum speed of 350-450 kg/h is 30m/min |
|
Operating environment requirements |
Temperature 5 ° C to 35 ° C, humidity 30% to 80%, less than 1000 m above sea level |
|
The noise level |
The main engine is 3 meters below 85 decibels, and some fans may exceed 85 decibels |
System configuration of stone paper casting paper machine
|
name |
Content |
|
Feeder system |
Negative pressure suction device, storage barrel, metering feed mechanism, automatic feed PLC control program |
|
Screw |
diameter 150 single screw, L/D 36:1, 80single screw, long diameter ratio 28:1, screw material: 38CrMoALA high quality alloy steel, surface nitride treatment, nitride depth of 0.6mm, surface hardness HV is greater than 950.The heating segment of the main screw is seven sections, and the number of the heating segments of the pair is 5.
|
|
Gear box |
Gear box 2-level drive precision hard grinding surface teeth;Inclined gear material (fine grinding) 20 chrome manganese carburizing treatment. |
|
motor |
Main extruder is 132kw-22kw 4 class 380V 50HZ, 6 group C belt |
|
Mold |
ABC three-layer T mould head, electric temperature control temperature, width 1600mm, Germany 2738 steel, hanger design, the flow channel electroplating hard chromium 0.03-0.04mm and with mirror polishing, outer plug, unilateral 300mm.Adjustment of die clearance adjustment with push-pull fine tooth screw adjustment, adjusted amount of 0.5mm, die gap: 1.5mm, temperature control: total 7area * 3KW, PLC automatic temperature control.Heating method: heating with aluminum heating coil, completely closed wiring. |
|
Stretch film roll |
Current steel rollers: 500 x 1600mm, sanding steel roller,sandblasting treatment contains 400 head of diamond sand 30%,using spiral flow cooling system, the water temperature difference is less than 3 degrees, driving power 4KW variable frequency speed regulating motor (with speed reducer)，
Fluid silicon gel roller: the rubber surface with heat dissipation roller,450* 1600mm,with special milky white heat-resistant silicon gel. |
|
Stretching unit |
Stretching roller surface width 1600mm, preheating roller 1 set, stretching roller can achieve 1-8 times the stretching rate, cooling roller 1 set, mirror steel rod, servo motor control, achieve the stone paper unidirectional stretching molding, reduce the stone paper density. |
|
The leading cutting |
Includes traction roller, guide roller, expantion roller, cutting device,destatic device and other parts. |
|
Thickness gauge
|
The thickness and thickness deviation of the paper can be shown in the thickness and thickness deviation of the paper. The data can be provided to the operators for the thickness adjustment. |
|
Winding machine |
Adopt double station center to collect roll, roll up roll of the biggest roll diameter 1000mm, 6 inch gas shaft, 2motor power 4KW level4, curved roll, adopt constant tension control system |
