With 1600 PP/PC Hollow Profile Sheet Extrusion lines all around the world

Hollow profile sheet extrusion line can be classified differently according to the thickness, width, structure, shape of the products they produce, as well as the types of plastic raw materials used:

According to the product width, they can be divided into units with widths of 1400mm, 1800mm, 2300mm, 2400mm, 2600mm, 2800mm, 3000mm, and 3200mm.
According to the product thickness, they can be divided into units for thickness ranges of 2 - 6mm, 6 - 12mm, and 12 - 18mm.
According to the product structure, they can be divided into double - wall sheets, triple - wall sheets, and quadruple - wall sheets.
According to the product shape, they can be divided into ordinary type - I, type - S, type - V, type - X, and type - 米.
According to the plastic raw materials used for the products, they can be divided into those using PP, PE, and PC.
In addition, there are various product series such as ultra - light and ultra - thin sheets, and hollow films for greenhouse.

The 2025 International Rubber and Plastic Exhibition (Chinaplas)

A leading provider of polymer material extrusion equipment in China

Wuhan Handern Machinery Co., Ltd. is a National-level "Little Giant" Enterprise (Specialized, Refined, Unique, and Innovative)

China’s leading enterprise in polymer material extrusion equipment and a pioneer in the localization of high-end equipment for the plastic extrusion industry.

Global leader in hollow sheet production lines, exported to over 20 countries and regions. Ranked No.1 in global shipments for over a decade, with cumulative deliveries exceeding 1,600 production lines.

Innovation Highlights:

China’s first to develop the one-step hollow sheet manufacturing process.

Pioneered green application of industrial solid waste phosphogypsum, with the nation’s first complete one-step hollow sheet production line delivered to Guizhou Phosphate Chemical Group in March 2024.

China’s top provider of dry-process lithium battery separator production equipment and the only domestic company capable of delivering complete production lines, serving leading downstream clients like BYD.

Delivered China’s first semi-solid electrolyte separator (gel polymer electrolyte separator) production line to a client in December 2023.

Send emails

Technical Parameter

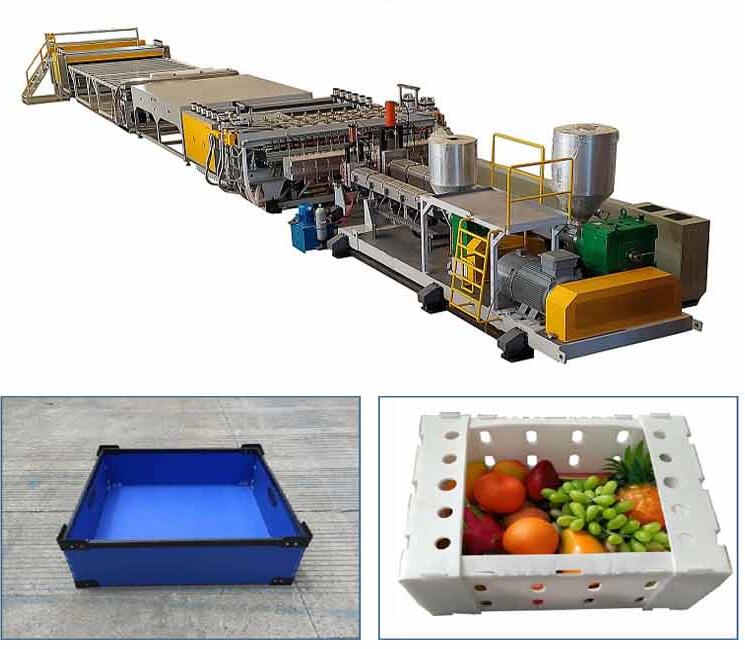

PP/PC/PE hollow profile sheet extrusion machine data

Machine type	Sheet width(mm)	Sheet thickness(mm)	Max.Extrusion capacity(KG/H)
1400	1250	2-6 6-12 12-18	230/280/350
1800	1650	2-6 6-12 12-18	280/350/420
2300	2150	2-6 6-12	340/350
2400	2200	2-6 6-12	310/450
2600	2450	2-6 6-12	360/480
2800	2600	2-6 6-12	410/500
3200	3050	2-6 6-12	600
3600	3400	2-6 6-12	680

PC hollow profile sunshine sheet producting machine data

Machine type	Sheet width(mm)	Sheet thickness(mm)	Max.Extrusion capacity(KG/H)
2300	2100	4-6 8-12	300-400

The configuration of machines can be CUSTOMIZED according to your needs!

PP hollow sheet machine	Unit
Single Screw Extruder	one set
Die	one set
Hydraulic Pressure Screen Changer	one set
Vaccum Calibration Table	one set
First Haul-off	one set
Oven	one set
Cooling Device	one set
Second haul-off	one set
Cutting device	one set
Electrical Control Cabinet	one set
Stacker	one set
Screw Loader	one set

Hollow sheet instead of carton advantages

Global paper prices rebounded from the previous quarter, andprice increases are no longer "new", Carton in the use of the pocess of single color, rigid image, damp goods damage rate ishigh, express packaging damage rate, cold fresh products rotrate. etc. the most important is the destruction of the environment.carton durability is poor and other unavoidable problems, resultingn a lot ofadditional losses.
Hollow Sheet (Corrugated Sheet) is polypropylene (PP) or polyethylen(PE) as the main raw material, extrusion molding plastic sheet, is aeqular shape, smooth, soft material, rich color, novel style, can beused as a packing box, advertising board, tree protection board.lining board, partition board, cushion board, animal greenhouse boardMany properties have unparalleled advantages over cardboard, woodaluminum and other plates, and can be used as a substitute for themin many fields. Moreover, it can be recycled repeatedly, zero pulp, noexhaust gas, zero cutting, no sewage discharge, waterproof and mois-ture-proof, recyclable, image upgrading and many other advantagesWith a strong moisture, mildew, mothproof, anti-static, corrosion resistance, wear resistance, shock resistance, anti-ultraviolet, anti-aging,sound insulation, breathable use effect, even in the harsh environmentis not easy to occur deformation, foaming, swelling, fracture. is themodern field ofmaterials ofchoice.

About Handern

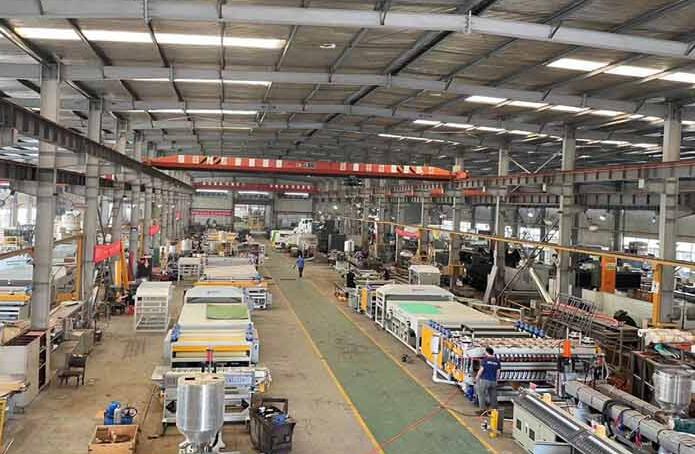

Wuhan Handern Machinery Co., Ltd. is a high-tech Sino-foreign joint venture integrating scientific research, production and sales. Our company is located in the center of the beautiful city Wuhan, which is adjacent to the airport, railway station and bus station, with convenient transportation. Our company founded in 2005. At present, it has more than 70,000 square meters of workshops and more than 300 employees,and 30 engineers with medium and high titles. Handern have had consistently adhered to the business philosophy of integrity, equality, and customer interests first. The products are managed by GB/T 19001-2000 idt ISO 9001:2000 quality system, and our company provide support and personnel training for customers.
