With 1600 Hollow Sheet Machine all around the world

Hollow Sheet Machine can be classified differently according to the thickness, width, structure, shape of the products they produce, as well as the types of plastic raw materials used:

According to the product width, they can be divided into units with widths of 1400mm, 1800mm, 2300mm, 2400mm, 2600mm, 2800mm, 3000mm, and 3200mm.
According to the product thickness, they can be divided into units for thickness ranges of 2 - 6mm, 6 - 12mm, and 12 - 18mm.
According to the product structure, they can be divided into double - wall sheets, triple - wall sheets, and quadruple - wall sheets.
According to the product shape, they can be divided into ordinary type - I, type - S, type - V, type - X, and type - 米.
According to the plastic raw materials used for the products, they can be divided into those using PP, PE, and PC.
In addition, there are various product series such as ultra - light and ultra - thin sheets, and hollow films for greenhouse.

Online Consultation

The 2025 International Rubber and Plastic Exhibition (Chinaplas)

A leading provider of polymer material extrusion equipment in China

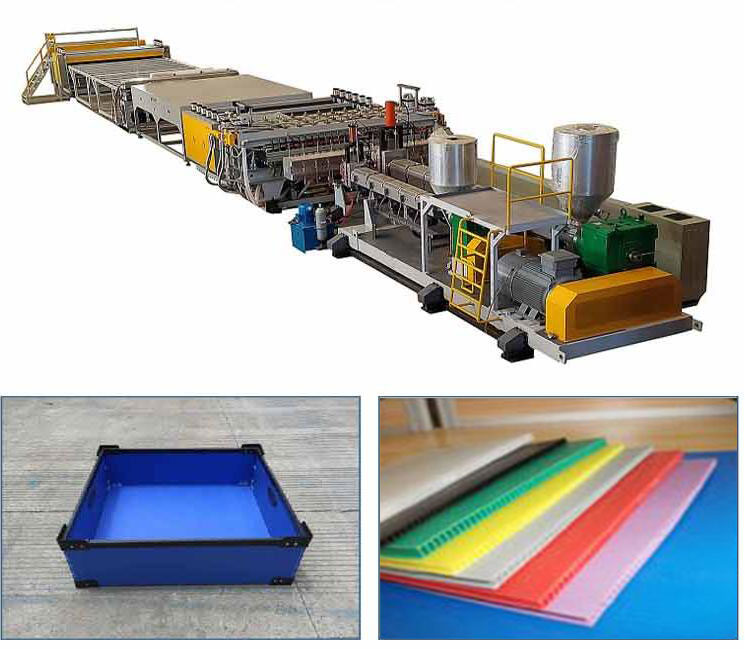

Our Hollow Sheet Machine delivers unmatched precision and efficiency for producing lightweight, high-strength plastic sheets. Designed for PP, PE, and recycled materials, this machine features automated extrusion, rapid cooling, and customizable thickness (2mm-12mm) to meet diverse industrial needs. Ideal for packaging, automotive interiors, construction panels, and signage, it ensures energy-saving operation with outputs up to 1,000 kg/h. Built with robust components and user-friendly controls, our machine minimizes downtime and maximizes ROI. Whether you need single or multi-layer sheets, our technology guarantees consistent quality and fast ROI. Upgrade your production line – contact us for a tailored solution and free consultation!

Online Consultation

Technical Parameter

PP/PC/PE hollow profile sheet extrusion machine data

Machine type	Sheet width(mm)	Sheet thickness(mm)	Max.Extrusion capacity(KG/H)
1400	1250	2-6 6-12 12-18	230/280/350
1800	1650	2-6 6-12 12-18	280/350/420
2300	2150	2-6 6-12	340/350
2400	2200	2-6 6-12	310/450
2600	2450	2-6 6-12	360/480
2800	2600	2-6 6-12	410/500
3200	3050	2-6 6-12	600
3600	3400	2-6 6-12	680

PC hollow profile sunshine sheet producting machine data

Machine type	Sheet width(mm)	Sheet thickness(mm)	Max.Extrusion capacity(KG/H)
2300	2100	4-6 8-12	300-400

The configuration of machines can be CUSTOMIZED according to your needs!

PP hollow sheet machine	Unit
Single Screw Extruder	one set
Die	one set
Hydraulic Pressure Screen Changer	one set
Vaccum Calibration Table	one set
First Haul-off	one set
Oven	one set
Cooling Device	one set
Second haul-off	one set
Cutting device	one set
Electrical Control Cabinet	one set
Stacker	one set
Screw Loader	one set

Online Consultation

Hollow sheet instead of carton advantages

Global paper prices rebounded from the previous quarter, andprice increases are no longer "new", Carton in the use of the pocess of single color, rigid image, damp goods damage rate ishigh, express packaging damage rate, cold fresh products rotrate. etc. the most important is the destruction of the environment.carton durability is poor and other unavoidable problems, resultingn a lot ofadditional losses.
Hollow Sheet (Corrugated Sheet) is polypropylene (PP) or polyethylen(PE) as the main raw material, extrusion molding plastic sheet, is aeqular shape, smooth, soft material, rich color, novel style, can beused as a packing box, advertising board, tree protection board.lining board, partition board, cushion board, animal greenhouse boardMany properties have unparalleled advantages over cardboard, woodaluminum and other plates, and can be used as a substitute for themin many fields. Moreover, it can be recycled repeatedly, zero pulp, noexhaust gas, zero cutting, no sewage discharge, waterproof and mois-ture-proof, recyclable, image upgrading and many other advantagesWith a strong moisture, mildew, mothproof, anti-static, corrosion resistance, wear resistance, shock resistance, anti-ultraviolet, anti-aging,sound insulation, breathable use effect, even in the harsh environmentis not easy to occur deformation, foaming, swelling, fracture. is themodern field ofmaterials ofchoice.

About Handern

Wuhan Handern Machinery Co., Ltd. is a leading domestic provider of polymer material extrusion equipment and system solutions and a national-level specialized and new "little giant" enterprise. The company's equipment products are widely used in the production and processing fields of new environmentally friendly packaging materials and high-end functional films. It has leading extrusion equipment and system solutions in many application scenarios, filling the domestic gap and realizing the domestic replacement of high-end equipment.
The company's hollow plate equipment exports to more than 20 countries and regions around the world, and its shipments have been ranked first for more than ten consecutive years. It has pioneered one-step manufacturing technology in the world, mastered the manufacturing processes of hollow plates such as high-filled phosphogypsum and fly ash, opened up a new scenario for green application of industrial solid waste, solved major national environmental problems, and delivered the first one-step phosphogypsum hollow plate production line to Guizhou Phosphate Group. The company is a leading domestic dry-process lithium battery separator production equipment enterprise, and the only domestic company with the ability to deliver the entire production line of dry-process lithium battery separator. The downstream terminal applications cover industry leaders such as BYD. The company's semi-solid lithium battery electrolyte membrane, polyimide (PI) membrane, ultra-thin composite fluid collection membrane and other high-end functional film equipment have been delivered to customers one after another.
The company insists on R&D drive and is deeply engaged in the field of polymer extrusion equipment. It has successively established the "Hubei Engineering Research Center for Biomedical and Protective Materials" with Huazhong University of Science and Technology, and jointly established the "Popylmer Intelligent Manufacturing Equipment R&D Center" with South China University of Technology. Relying on the team of Academician Qu Jinping, it has jointly carried out a number of technical development cooperation in the cutting-edge fields of polymer material forming and processing engineering, and is committed to promoting the development of domestic polymer intelligent manufacturing equipment and the process of domestic high-end equipment. The "Key Technique for Strengthening the Process of Polymer Materials Processing" jointly developed by the company, together with Huazhong University of Science and Technology and South China University of Technology, has successfully passed the scientific and technological achievements appraisal organized by the China Plastic Machinery Industry Association. The expert group unanimously believes that the relevant achievements are international firsts and are major innovations in the field of polymer and composite materials processing at home and abroad, and are at the international leading level.
